EOT Crane Brake Types Explained: A 2025 Guide to Function, Safety & Selection
Electric Overhead Traveling (EOT) cranes are engineered for precision, safety, and heavy-duty lifting. One of the most critical safety features in these cranes is their braking system. Without reliable brakes, operational risks and damage can skyrocket.
When sourcing equipment, always partner with trusted EOT cranes manufacturers in India to ensure you receive quality braking systems aligned with the latest standards.
In this guide, we break down all EOT crane brake types, compare their strengths, and share tips on maintenance and selection—perfect for crane buyers, plant managers, and maintenance engineers.
Why Are Brakes So Important in EOT Cranes?
Brakes in EOT cranes serve two key purposes:
- Holding the load steady during suspension.
- Stopping the crane’s movement during operation or emergencies.
Improper braking can lead to:
- Swinging loads
- Crane derailment
- Structural damage
- Worker injuries
According to a 2024 industry safety report, nearly 26% of crane-related accidents were caused by faulty or worn-out brake systems, emphasizing the need for correct brake selection and timely maintenance.
Complete List: EOT Crane Brake Types (With Applications)

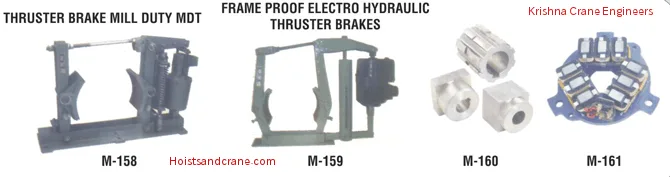

1. Electro Hydraulic Thruster Brake
How it works:Uses an electro-hydraulic thruster to release and apply brakes through fluid pressure.
Used for:Heavy-duty EOT cranes, especially in steel plants, cement, and mining.
Pros:
- Smooth braking
- Long-lasting
- Suitable for harsh environments
Cons:
- Higher upfront cost
- Requires hydraulic maintenance

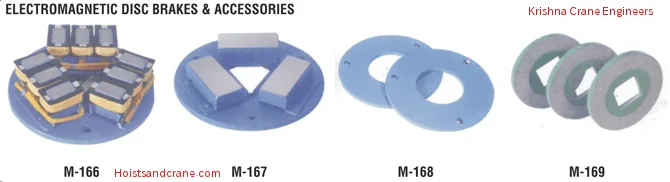

2. Electromagnetic Disc Brake
How it works:When power is applied, the electromagnet pulls the brake disc away from the pad. When power is cut, the brake engages.
Used for:Hoists, cranes, and conveyor systems with frequent stop-start motion.
Pros:
- Compact size
- Quick response
- Low maintenance
Cons:
- Not ideal for very high torque applications

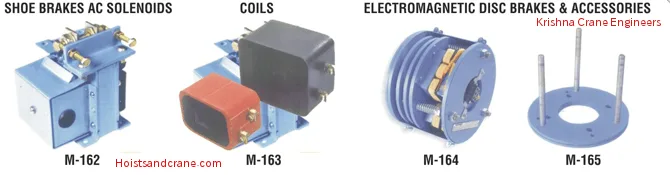

3. AC/DC Solenoid Drum Brakes
How it works:Uses an AC or DC solenoid to lift the brake shoe, releasing the brake when energized.
Used for:Medium-duty EOT cranes and hoists
Pros:
- Reliable for standard operations
- Easy to retrofit
Cons:
- Slower response than electromagnetic types
4. Hydraulic Shoe Brake
How it works:Applies hydraulic pressure on brake shoes to clamp them against a rotating drum.
Used for:Cranes in port handling, shipyards, and steel industries
Pros:
- High torque braking
- Suitable for continuous heavy-duty use
Cons:
- Higher maintenance due to fluid systems
5. Pneumatic Brakes
How it works:Operates using compressed air to activate brake shoes or discs.
Used for:Explosion-proof environments like oil refineries
Pros:
- Clean and spark-free
- Good for flammable zones
Cons:
- Requires compressed air setup
- Less common in standard EOT cranes
6. Fail-Safe Spring Loaded Brake
How it works:Brake engages automatically when power fails. Power must be applied to release it.
Used for:Critical applications where sudden power loss is a risk
Pros:
- Maximum safety
- Energy-efficient
Cons:
- Not ideal for continuous operations without automation support
7. DC Magnetic Brake
How it works:A DC-powered coil generates magnetic force that disengages the brake when powered.
Used for:Hoisting mechanisms in light to medium-duty EOT cranes
Pros:
- Reliable under DC supply
- Compact design
Cons:
- Limited torque output
How to Choose the Right Brake Type for Your EOT Crane
When choosing among EOT crane brake types, consider:
| Factor | Best Brake Type |
| Heavy loads | Electro Hydraulic or Hydraulic Shoe |
| Frequent operations | Electromagnetic Disc |
| Emergency stops | Spring-loaded Fail-Safe |
| Hazardous zones | Pneumatic Brakes |
| Budget-friendly | AC/DC Solenoid |
Real-World Stats: Crane Brake Trends (2025)
- ✅ Electro Hydraulic Thruster Brakes dominate 42% of the Indian crane brake market due to their durability.
- ✅ Brakes with fail-safe technology are now mandatory in IS 3177-compliant cranes.
- ✅ Electromagnetic brakes are the top choice in warehouse automation cranes as of early 2025.
Maintenance Tips for EOT Crane Brakes
- Inspect brake pads and shoes monthly
- Check hydraulic or pneumatic lines for leakage
- Test emergency stop and power-off response
- Clean magnetic coils and solenoids to prevent dust buildup
- Calibrate release and holding force regularly
Comparison Chart: Key EOT Crane Brake Types
| Brake Type | Torque Capacity | Maintenance | Application Zone |
| Electro Hydraulic | High | Medium | Steel, Cement, Mining |
| Electromagnetic Disc | Medium | Low | Warehouses, Hoists |
| Hydraulic Shoe | Very High | High | Shipyards, Ports |
| Solenoid Drum (AC/DC) | Medium | Low | Standard Factory Use |
| Pneumatic | Medium | Medium | Explosive Areas |
Safety First: Don’t Compromise on Brakes
Even the best crane can’t perform safely without the right braking system. That’s why understanding brake types is critical—not just for performance but for compliance and protection of assets and people.
If you’re exploring crane configurations, don’t miss this detailed guide on EOT crane types to choose a system that fits your application and braking needs.
Conclusion
Every EOT crane relies on precision braking to ensure operational safety. From electromagnetic disc brakes for fast-response lifting to electro-hydraulic brakes for heavy-duty loads—each type serves a distinct purpose. Choose wisely, maintain regularly, and always source from reputed crane experts.
FAQs – People Also Ask
Q1. What are the most common EOT crane brake types?Electromagnetic disc brakes, electro-hydraulic thruster brakes, and AC/DC solenoid drum brakes are among the most commonly used in India.
Q2. Which brake is best for heavy-duty cranes?Electro-hydraulic thruster and hydraulic shoe brakes are ideal for heavy-duty applications due to their high torque and durability.
Q3. What is a fail-safe brake in EOT cranes?A fail-safe brake engages automatically during a power cut, ensuring the crane stops immediately to avoid accidents.
Q4. How often should crane brakes be serviced?Basic inspections should be done monthly, while full maintenance should be conducted every 3 to 6 months, depending on usage.
Q5. Can you retrofit new brake types into old EOT cranes?Yes, many modern brakes like electromagnetic or AC solenoid brakes can be retrofitted into older crane systems with minor modifications.
