Gantry Girder Design Guide | Load Calculations, Standards & Examples
Gantry girders are one of the most crucial structural members in any industrial crane system, especially in manufacturing hubs like Ahmedabad where facilities rely heavily on EOT cranes, gantry cranes, and material-handling equipment. A well-designed gantry girder ensures smooth crane movement, minimum vibration, high load-carrying capacity, and long-term safety.
With industries expanding rapidly across Gujarat—engineering, fabrication, chemicals, logistics—the demand for safe and efficient gantry girder design has increased. This guide simplifies gantry girder design using updated engineering methods, practical examples, IS code requirements, and step-by-step calculations used by engineers across India.
What is a Gantry Girder?

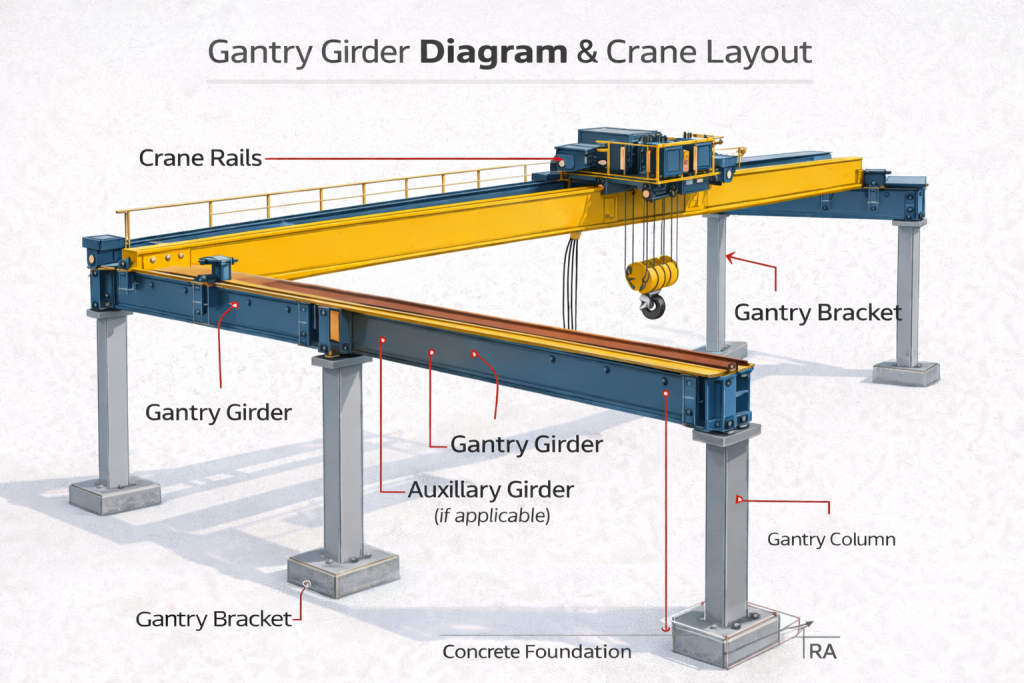

A gantry girder is a horizontal structural beam that supports the vertical loads of a crane system. These are typically I-section or box-section steel members that run along the length of a building and support the crane rails upon which the crane wheels move.
📊 Industry Insight: According to recent industry reports, India’s crane and material-handling equipment market is growing steadily at 7–9% CAGR, driven by infrastructure, warehousing, and manufacturing expansion. Gujarat remains one of the top 3 regions contributing to this growth.
Types of Loads Acting on Gantry Girders
Designing a gantry girder requires careful consideration of various static and dynamic loads, including:
1. Vertical Loads
- Self-weight of the crane
- Weight of the lifted load
- Impact factor (typically 25% of the live load for electric overhead traveling cranes)
2. Horizontal Loads
- Crane surge or traverse force: Caused by the sudden braking or acceleration of the crane
- Crane skewing: Uneven load distribution across crane wheels
3. Longitudinal Loads
- Due to the motion of the crane along the gantry rail, especially during sudden stops.
✅ Rule of Thumb: For electric overhead cranes, horizontal and longitudinal loads are usually taken as 10% of the lifted load for initial design calculations.
Design Standards & Codes
In India, gantry girders must be designed as per:
Engineers in India typically follow the below IS Codes:
- IS 800:2007 (Reaffirmed 2022) – General construction in steel
- IS 807:2006 – Design guidelines for EOT cranes and gantry girders
- IS 875 (Part 1–5) – Dead load, live load & wind load
- IS 1893 (Part 1):2016 – Earthquake considerations for crane supporting structures
- IS 11384:2022 – Design and detailing of composite structures (for hybrid girders)
⚖️ Safety Note: As per IS 807, gantry girders are subjected to Class I, II or III loading, depending on usage frequency. Most industrial cranes fall under Class II (medium duty).
Step-by-Step Design of Gantry Girders
Let’s break the process down into a simplified example and key steps:
🧮 Assumptions for Sample Design:
- Crane capacity: 20 tonnes (200 kN)
- Self-weight of crane: 50 kN
- Span of gantry girder: 8 meters
- Wheelbase of crane: 3 meters
- Wheel spacing (center to center): 2 meters
- Impact factor: 25%
✅ Step 1: Calculate Total Load per Wheel
✅ Step 2: Determine Maximum Moment on Gantry Girder
The wheel load acts as a point load moving along a simply supported beam.
Using standard influence line diagrams or software like STAAD.Pro, the maximum bending moment can be computed.
For approximation: Max BM=W⋅a⋅bL\text{Max BM} = \frac{W \cdot a \cdot b}{L}Max BM=LW⋅a⋅b
Where:
- W = wheel load
- a and b = distances from wheel to supports
- L = span of gantry girder
✅ Step 3: Select Steel Section
Choose an appropriate ISMB or built-up section to resist the bending moment and shear.
Key checks:
- Bending stress should not exceed design strength
- Shear stress within permissible limits
- Deflection < Span / 750 (as per IS 800)
📈 Engineering Note: Gantry girders often require custom built-up I-sections or box sections due to the high dynamic forces.
✅ Step 4: Check for Lateral Torsional Buckling
Since the crane applies a load on the top flange only, the girder is laterally unsupported, increasing the risk of lateral torsional buckling (LTB).
Use the effective length and slenderness ratios from IS 800 to compute the LTB reduction factor and ensure adequate moment resistance.
✅ Step 5: Fatigue and Impact Considerations
Cranes in regular operation induce repetitive stress cycles. Hence, consider fatigue checks based on expected number of load cycles.
As per IS 800 Clause 13, the fatigue design should be based on:
- Stress range
- Number of cycles
- Material S-N curves
Common Mistakes to Avoid in Gantry Girder Design
- Ignoring lateral surge loads from cranewheel movement
- Selecting non-standard I-sections that complicate installation
- Not checking deflection under impact load
- Overlooking fatigue due to repetitive crane cycles
- Using old IS 800 values without verifying latest reaffirmation
Software Tools for Gantry Girder Analysis
To streamline the design and ensure compliance with codes, engineers often use software tools like:
- STAAD.Pro
- ETABS (for integration with building frames)
- Tekla Structures
- SAP2000
💡 Pro Tip: STAAD.Pro allows automated code checks for IS 800 including lateral torsional buckling, making gantry girder modeling easier.
Real-World Example
“In Ahmedabad’s Vatva and Changodar industrial belts, most factories use 5–20 ton EOT cranes requiring gantry girders spanning 6–10 meters. A typical steel plant recently upgraded its gantry girder from ISMB to a plate girder due to heavier load cycles—resulting in 30% reduced deflection and improved stability.”
- The crane operates 18 hours/day, 6 days/week
- Load cycles exceed 1,000,000/year
- Steel grade used: E350 (Fe 490)
Design engineers adopted a custom plate girder with:
- Depth: 900 mm
- Top/bottom flange: 300 mm × 25 mm
- Web: 900 mm × 10 mm
- Deflection limit: maintained within 8 mm
This setup improved durability and minimized deflection vibrations, ensuring a 30% longer life cycle than ISMB-based options.
Conclusion
Gantry girder design is a critical part of any industrial or warehousing infrastructure. It requires precision, understanding of codes, and practical insights into loading behavior. With increasing automation and crane usage, demand for optimized, fatigue-resistant, and cost-effective gantry girders is rising.
Whether you’re a structural engineer, architect, or student, having a solid grasp of gantry girder design principles—backed by IS codes and real-world data—will empower you to make safer and more efficient decisions.
FAQs
Q1: What is the impact factor for gantry girder design?
A: Typically 25% of the live load for electric overhead cranes.
Q2: Which IS codes are essential for gantry girders?
A: IS 800, IS 807, and IS 3177.
Q3: What type of steel is commonly used?
A: E250 (Fe 410) and E350 (Fe 490) are commonly used grades in India.
