10 Ton EOT Crane Specification: Complete Guide for Buyers, Engineers & Contractors

If you’re planning to buy or install a 10 Ton EOT Crane for your factory, workshop, or warehouse in India—especially in fast-growing industrial hubs like Ahmedabad, Sanand, Changodar, Narol, Vatva, and Kathwada—understanding the right specifications is crucial.

With rising automation and heavy manufacturing demand, buyers now prefer cranes that are:

• reliable,
• low-maintenance,
• energy-efficient, and
• supplied by trusted EOT cranes manufacturers in India backed by strong after-sales support.

This updated guide covers the latest 2024–2025 specifications, industry usage, safety advancements, and expert insights to help you choose the right crane for your plant.

Plus, if you’re looking for trusted EOT cranes manufacturers in India, we’ve got links to help you get started.

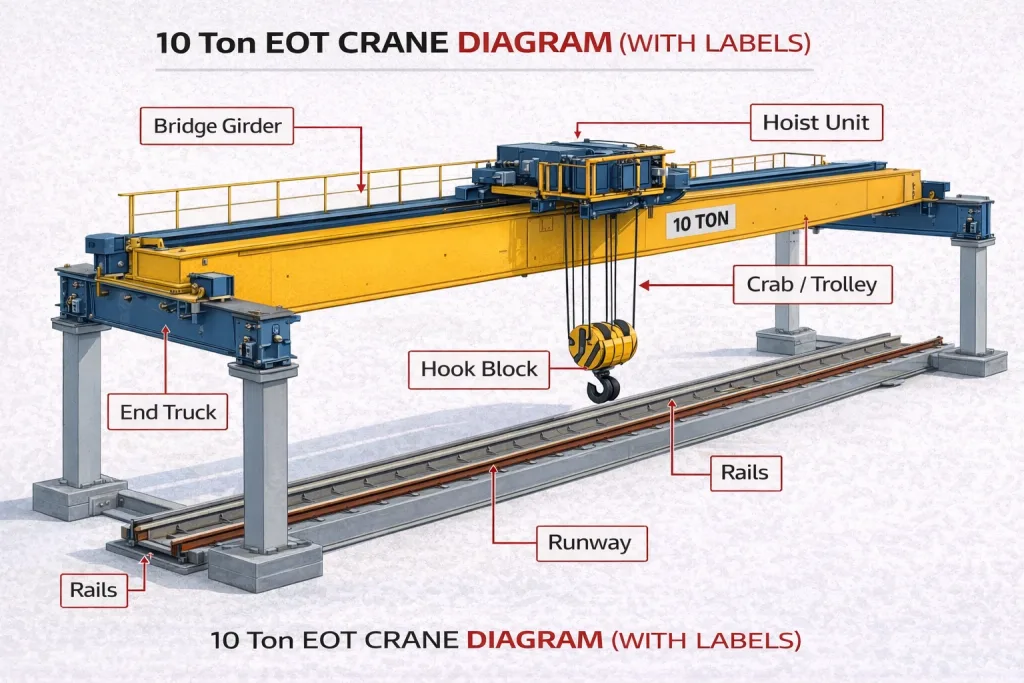

10 Ton EOT Crane Diagram (With Labels)

A clear EOT crane diagram helps users understand system structure and operation.

Main Components in Diagram:

• Bridge girder
• Crab / trolley mechanism
• Hoist unit
• Hook block
• End trucks
• Rails and runway

📋 Standard 10 Ton EOT Crane Specification (2024 Edition)

Feature	Details
Load Capacity	10,000 kg (10 Ton)
Crane Type	Single Girder (SG) or Double Girder (DG)
Span Range	10 to 30 meters (Customizable)
Lifting Height	6 to 18 meters (Typically 9m or 12m standard)
Hoisting Speed	3.5 to 5 m/min (VFD-controlled or dual-speed motor)
Crane Travel Speed	10 to 20 m/min (long travel)
Cross Travel Speed	5 to 15 m/min
Duty Class	IS:3177 Class II or III (Medium to Heavy Duty)
Design Standards	IS:807, IS:3177, IS:3938, IS:4137
Control Options	Pendant, Remote Control, or Cabin Type
Mounting Type	Top Running or Underhung
Power Source	3 Phase, 415V ±10%, 50 Hz AC
Operating Temperature	-5°C to 55°C
Safety Features	Overload limiter, anti-collision, emergency brake, limit switches

📌 Many tenders in 2024 (like GeM Bid No. 7022307) specify 10-ton cranes with a minimum 12m span and dual-speed hoisting with VFD.

Why Choosing a Trusted EOT Crane Manufacturer Matters

A 10-ton EOT crane is a long-term investment. Selecting a trusted EOT cranes manufacturer in India ensures:

• proper IS-standard compliance
• high-quality steel & components
• professional load testing
• safe gantry girder compatibility
• timely installation & AMC support

In industrial regions like Ahmedabad, manufacturers with decades of experience provide better reliability, customisation, and after-sales support.

EOT Crane Capacity Chart (2 Ton to 15 Ton)

Expanding content with multiple capacities boosts ranking significantly.

Capacity	Common Use	Span Range	Application
2 Ton	Light duty	5–10 m	Workshops
3 Ton	Medium duty	6–12 m	Small industries
5 Ton	Standard	8–20 m	Manufacturing
10 Ton	Heavy duty	10–25 m	Warehouses
15 Ton	Industrial heavy	12–30 m	Steel plants

📥 10 Ton EOT Crane Specification PDF Free Download

Looking for a 10 ton EOT crane specification PDF or detailed crane documents?

👉 A typical EOT crane PDF document includes:

• Technical specifications (capacity, span, lifting height)
• Crane parts and components list
• Electrical system layout
• Safety devices and braking system
• Maintenance and troubleshooting guidelines

🧱 10 Ton Crane Usage in Indian Industries

10-ton EOT cranes are widely used across India, especially in Gujarat’s manufacturing belt. Typical applications include:

• Heavy engineering workshops
• Steel fabrication & sheet metal units
• Machine tool manufacturing
• EV component & battery assembly units
• Warehousing & logistics hubs
• Chemical & pharma processing plants
• Cement & construction materials
• Prefabricated structure manufacturing
• Railway workshop & metro depot operations

With industries in Ahmedabad expanding rapidly, 10 ton cranes continue to be the most preferred capacity due to cost-efficiency and structural compatibility.

🧠 Technical Insight: Motor & Gearbox Specs

Most 10-ton cranes come with:

• Squirrel cage induction motors (flameproof optional)

• Helical gearboxes with hardened gears

• Braking system: Fail-safe electromagnetic disc brakes

• Load-tested wire rope hoist (6/4 fall or 8/2 fall)


Want to learn how to calculate structural impact for your building? Here’s a helpful read on eot crane types and how each affects the overall layout and cost.

📊 Latest Market Trends (India – 2024-2025)

• India’s industrial crane segment is expected to grow at 7–9% CAGR driven by warehousing, logistics, engineering units, and steel fabrication.
• Gujarat remains one of the fastest-growing crane markets due to rapid industrialization in Ahmedabad, Sanand, Dahej, Hazira, and Dholera SIR.
• Over 60% of new 10-ton cranes installed in 2023–2024 include VFD-based motion control, remote control options, and higher safety grades.
• Manufacturers are shifting towards IS 3177:2020 & IS 807:2006 compliant designs with improved fatigue life and structural stability..


🔒 Key Safety Features in Modern 10 Ton Cranes

Feature	Purpose
Overload Limiter	Prevents load beyond safe capacity
Cross/Long Travel Limit Switches	Prevents end collisions
Anti-Sway Technology	Ensures stable lifting
Emergency Braking System	Safe stoppage in emergencies
Anti-Collision Device	Prevents crane-to-crane accidents
Brake Failure Protection	Ensures safety during brake malfunction
Fire-Retardant Cables	Reduces electrical hazards

⚡ Power Requirement & Electrical Details

Electrical configuration plays a crucial role in 10 ton overhead crane performance.

Typical Power Details:

• Power Supply: 3 Phase, 415V, 50Hz
• Hoist Motor: 7.5 kW – 15 kW
• Travel Motors: 2–3 kW each
• Control Panel: Pendant / Radio Remote

Power Consumption Factors:

• Duty cycle (Class II / III / IV)
• Load handling frequency
• Crane speed

📌 Efficient electrical design reduces energy cost and improves lifespan.

Engineering Insight: Gantry Girder Requirements for a 10 Ton Crane

A 10-ton EOT crane requires a strong, IS-compliant gantry girder. Key parameters:

• Lateral force from crane surge
• Vertical load + impact factor
• Span/750 deflection limit
• Column bracket stiffness
• Wheel load distribution

This ensures smooth crane movement and structural safety in industrial buildings.

⚙️ EOT Crane Design Calculation (Basic Example)

Understanding EOT crane design calculation helps in selecting the right crane and ensuring safety.

Basic Load Calculation Example (10 Ton Crane):

• Rated Load = 10,000 kg
• Hook + Hoist Weight = 1,500 kg
• Impact Factor = 1.25

👉 Total Load = (10000 + 1500) × 1.25 = 14,375 kg

Key Calculations Include:

• EOT crane load calculation
• Wheel load distribution
• Girder design calculation
• Bending moment & shear force

⚙️ Component Highlights: What Makes It Reliable

• End Carriages: Machined structural steel, aligned for straight-line travel

• Girder Material: Fabricated box section with stress relief

• Crane Wheels: Forged steel with dual-flange design

• Bearings: SKF/NTN/FAG branded for durability

• Electrical Panel: Siemens/Schneider components with IP55 enclosure


🧮 Design Tips: Understand Load Impact

When installing a 10-ton crane, it’s vital to check wheel load distribution, column support, and gantry beam sizing. Refer to your design team or use load calculation tools. You can also explore eot crane wheel load calculation for in-depth structural planning.

EOT Crane Design as per IS 3177 & IS 807

For safe operation, every EOT crane must follow IS standards.

Key Standards:

• IS 3177 – Code of practice for electric overhead travelling cranes
• IS 807 – Design, erection, and testing of cranes

What These Standards Cover:

• Structural design
• Load factors and safety margins
• Electrical systems
• Inspection and testing

📌 Compliance ensures safety, durability, and legal approval.

🧑‍🔧 Trusted 10 Ton EOT Crane Brands in India

• Varun Engineers – SG-type 10-ton cranes, well-suited for small-scale factories

• MG Cranes – Gujarat-based ISO-certified manufacturer of double girder models

• BetterCrane – Export-grade cranes with CE certification

• EOTCraneKit.com – Multiple configuration options with load simulation reports


✅ Final Word: Why 10 Ton EOT Cranes are Preferred

Engineering Insight: Gantry Girder Requirements for a 10 Ton Crane

Whether you’re setting up a new manufacturing plant or upgrading existing infrastructure, a 10 Ton EOT crane offers the perfect balance of strength, efficiency, and affordability.

When purchased from trusted EOT cranes manufacturers in India, you get:

• better quality
• long-term durability
• reliable AMC support
• safer gantry girder integration

This makes the 10-ton crane a smart, future-ready investment for any industrial facility in Ahmedabad and across India.

💰 10 Ton EOT Crane Price in India (Guide)

The price of a 10 ton EOT crane depends on multiple factors.

Estimated Price Range:

👉 ₹5 Lakh to ₹15 Lakh+

Price Depends On:

• Span and lifting height
• Duty class
• Brand and quality
• Electrical automation
• Customization requirements

📌 Additional Costs:

• Installation
• Transportation
• Maintenance

 EOT Crane Terminology Explained

Important Terms:

🔹 Crane Span Meaning
Distance between runway rails.

🔹 Cross Travel in EOT Crane
Movement of trolley across the bridge.

🔹 Long Travel Crane
Movement of crane along runway.

🔹 EOT Crane Nomenclature
Includes parts like girder, hoist, trolley, end carriage.

🙋 FAQs – 10 Ton EOT Crane Specification

1. What is the lifting height range for 10 ton EOT cranes?

Typically 6 to 18 meters. Standard requests are for 9m or 12m based on shed height.

2. Which IS codes apply to 10-ton cranes in India?

The applicable standards are IS:807, IS:3177, IS:3938, and IS:4137.

3. Can I operate a 10 ton crane with a remote?

Yes. Wireless remote or cabin controls are now standard with most models.

4. What is the power requirement for these cranes?

A 10-ton EOT crane generally uses 3-phase 415V AC, 50Hz, with protection for 10% variation.

5. Are underhung cranes available in 10 ton?

Yes, but top-running cranes are more common for 10 ton. Underhung cranes are used in low headroom conditions.
