Electric Overhead Traveling (EOT) cranes are essential in modern industrial operations—from steel plants to warehouses. To ensure optimal performance and safety, understanding EOT crane all parts name and their roles is crucial. Whether you’re a mechanical engineer, plant operator, or crane buyer, this detailed guide is your go-to resource.
If you are looking for the best manufacturers, check out this list of trusted EOT cranes manufacturers in India for high-quality and reliable solutions.
What is an EOT Crane?
In industries across Ahmedabad, Electric Overhead Traveling (EOT) cranes play a pivotal role in material handling, ensuring smooth operations and maximum efficiency. In this guide, we will explore the essential parts, their functions, and maintenance tips that will help businesses keep their cranes in top shape.
EOT Crane Parts List with Functions & Importance (Quick Overview Table)
| Component | Function | Importance |
| Bridge | Supports crane movement | Core structure |
| Hoist | Lifts load vertically | Critical |
| Trolley | Moves hoist horizontally | Load positioning |
| Wire Rope | Carries load | Safety-critical |
| Hook | Holds material | Load attachment |
| Motor | Powers movement | Essential |
| Brake | Stops crane safely | Safety |
| Control Panel | Operates crane | User control |
Download EOT Crane Parts Name PDF
Download our EOT crane parts name PDF for a complete overview of crane components, diagrams, and maintenance basics.
👉 This PDF includes:
- Crane parts name with functions
- Overhead crane parts description
- Basic EOT crane diagram
- Key crane safety devices
- Simple maintenance guidelines
👉 This also works as a EOT crane maintenance manual PDF free download for operators and engineers.

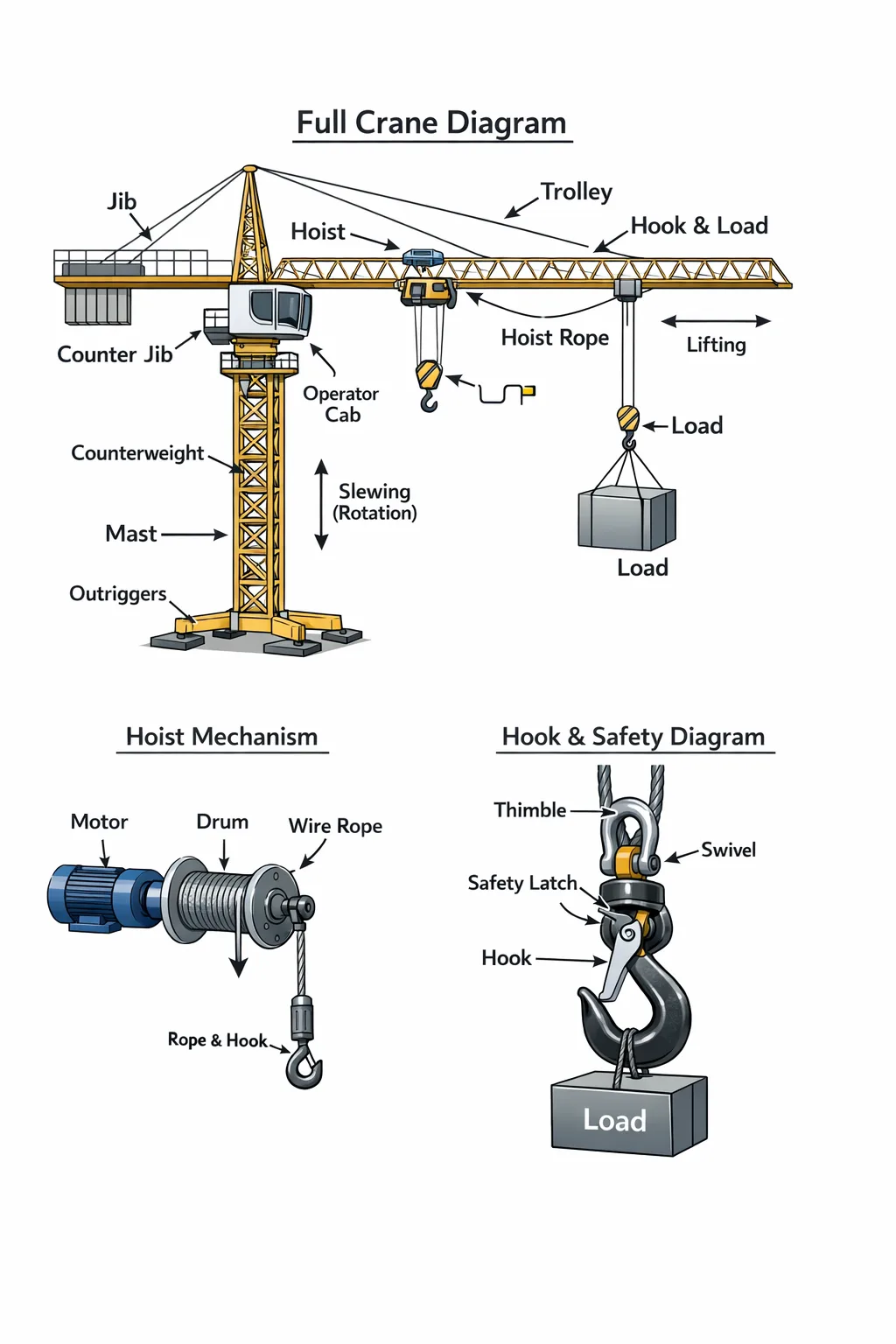

EOT Crane Parts Name with Picture (Visual Guide)
Understanding crane components becomes much easier with visuals. Below are EOT crane images and labelled pictures that clearly explain each part and its function.
👉 These crane diagram with labels examples help operators, engineers, and buyers quickly identify components.
Updated List (2026): EOT Crane All Parts Name and Their Functions
Here is a complete list of EOT crane components, categorized into mechanical, electrical, and structural parts.
1. Bridge Structure
- Bridge Girder: Main horizontal beam that supports the trolley.
- End Carriages / End Trucks: Connect the crane to the runway and house the wheels.
- Walkways / Platforms: For maintenance and inspection of the crane system.
2. Trolley Assembly
- Trolley Frame: Moves along the bridge girder.
- Hoisting Mechanism: Includes motor, gearbox, drum, and wire rope.
- Wire Rope Drum: Rolls the rope up/down for lifting loads.
- Hook Block: Includes pulley, hook, and load chain.
3. Hoisting Mechanism Components
- Hoist Motor: Powers the lifting operation.
- Gearbox: Reduces motor speed and increases torque.

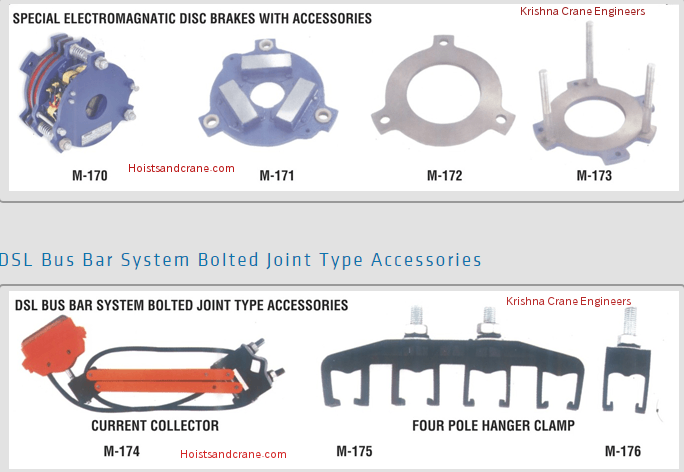

- Brake System: Electromagnetic or hydraulic brake for load control.
- Rope Guide: Prevents wire rope misalignment.
- Limit Switches: Prevent over-travel of hoist and trolley.
4. Drive Components
- Long Travel Drive Motor: Powers the crane’s horizontal movement.
- Trolley Travel Motor: Moves the trolley across the girder.
- Couplings & Shafts: Transmit power to wheels.
- Wheels & Bearings: Allow smooth rail movement.
5. Electrical Components
- Control Panel: Central unit housing VFDs, relays, and timers.
- Pendant Control or Remote: User interface to operate the crane.

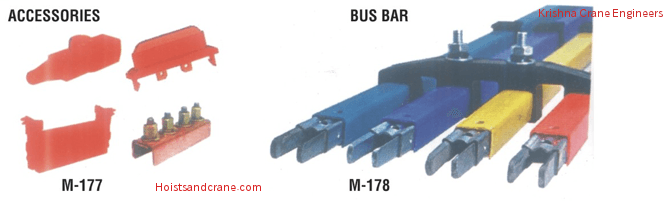

- Busbar or DSL System: Power supply to moving parts.
- Overload Relay: Protects from excess load.
- Electric Cable Festoon System: Manages flexible power cable movement.
6. Safety Devices
- Limit Switches (Up/Down & Travel): For safety cut-off.
- Load Limiters: Prevent overloading.
- Emergency Stop: Manual switch to stop all motion instantly.
- Anti-collision Devices: Avoid crashes with adjacent cranes.
- Buffers & Bumpers: Absorb shock at crane travel ends.

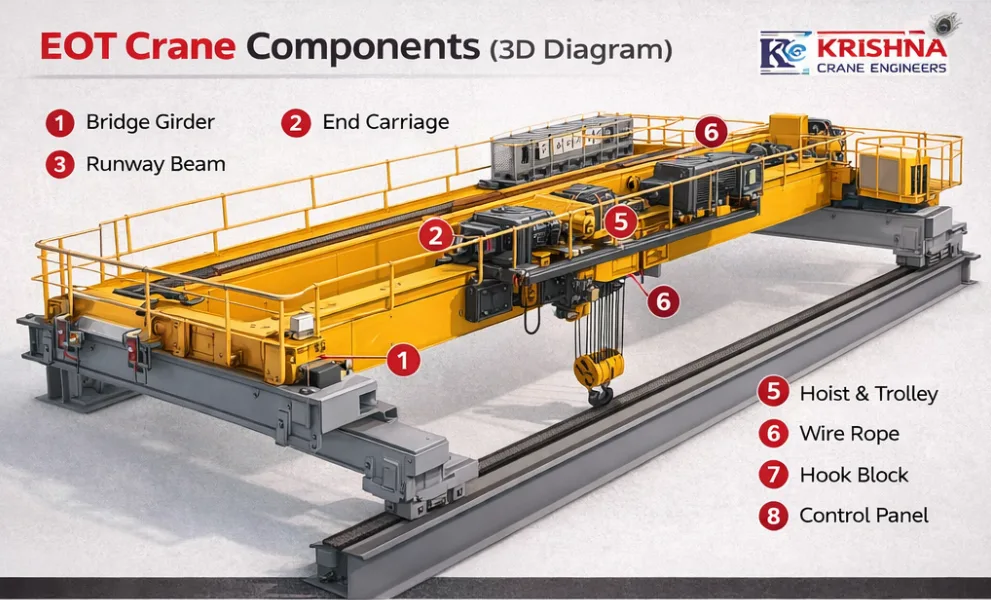

EOT Crane Diagram (With Labels & Explanation)
A properly labelled EOT crane diagram helps in understanding the structure, movement, and working mechanism of the crane.
👉 Below is a crane diagram with labels including:
- Bridge
- Hoist
- Trolley
- End trucks
- Control panel
Crane Terminology, Functions & Movements
Understanding crane terminology is essential for operators and engineers.
🔍 Key Concepts:
👉 Difference between hoist and EOT crane:
- Hoist = lifting mechanism
- EOT crane = complete system with movement in 3 directions
👉 Crane functions:
- Lifting
- Lowering
- Horizontal movement
- Material handling
👉 Crane movement names:
- Hoisting (up/down)
- Cross travel (left/right)
- Long travel (forward/backward)
👉 This is also known as crane nomenclature or parts of crane and their functions.
Why Knowing EOT Crane Parts Is Crucial
Understanding each part helps in:
- Preventing unexpected breakdowns
- Enhancing load safety
- Planning better maintenance schedules
- Ensuring compliance with safety standards like IS 3177 & IS 807
Latest Stats and Trends (2026)
- ✅ India’s EOT crane market is expected to grow at a CAGR of 5.8% from 2024 to 2029.
- ✅ Automated EOT cranes are now used in over 60% of Tier-1 manufacturing plants.
- ✅ 90% of maintenance issues are due to poor understanding of component wear.
Types of EOT Cranes and Their Parts
EOT cranes vary based on usage and structure. Know your EOT crane types to better understand which parts are essential in your setup:
- Single Girder Cranes: Fewer parts, compact structure.
- Double Girder Cranes: Heavier load capacity, dual trolley rails.
- Underslung Cranes: Run beneath runway beams.
- Gantry Cranes: Include legs and operate without permanent overhead rails.
EOT Crane Parts Cost
Approximate cost ranges (India):
- Wire Rope: ₹5,000 – ₹50,000
- Brake System: ₹10,000 – ₹1,00,000
- Motor: ₹25,000 – ₹2,00,000
- Control Panel: ₹15,000 – ₹1,50,000
👉 Prices vary based on capacity and customization.
Commonly Replaced EOT Crane Spare Parts
- Wire ropes
- Brake linings
- Contactors
- DSL collectors
- Gearboxes
- Crane wheels
- Couplings
Electrical Components of EOT Crane
The performance of an EOT crane depends heavily on its electrical system. Below are the major EOT crane electrical parts name and their functions:
- EOT Crane Motor: Used for hoisting, cross travel, and long travel
- Control Panel: Manages crane operations and safety
- Power Supply System: Provides required voltage and current
- Limit Switches: Prevent over-travel and accidents
- Brake System: Ensures load safety
- Remote / Pendant Control: Operator interface
👉 If you are wondering which type of motor is used in EOT crane, commonly used motors include:
- Squirrel cage induction motor
- Slip ring motor (for heavy-duty applications)
👉 The EOT crane control panel plays a critical role in safe and efficient operations.
Maintenance Tips for EOT Crane Parts
- Lubricate gears and wire ropes regularly.
- Inspect brake pads and limit switches monthly.
- Check alignment of wheels and runway beams.
- Test emergency stop and load limiters every 15 days.
- Replace worn-out electrical relays and DSL shoes proactively.

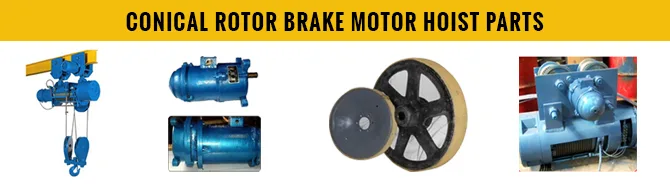

Hoist Parts Name & Function in Crane
The hoist is the most critical lifting mechanism in a crane.
👉 Hoist full form: Hoisting mechanism used to lift and lower loads.
Main Hoist Components:
- Electric motor
- Gearbox
- Wire rope / chain
- Hook block
- Drum
- Brake system
👉 These electric hoist parts name are essential for safe lifting operations.
👉 If you’re asking what is hoist in crane, it is the unit responsible for vertical lifting movement.
👉 Refer to the hoist parts diagram free PDF for a visual breakdown of each component.
EOT Crane Operator & Training Guide
An EOT crane operator plays a critical role in safe crane operations.
👉 Responsibilities include:
- Load handling
- Equipment inspection
- Following safety protocols
👉 Proper EOT crane operator training ensures:
- Reduced accidents
- Improved efficiency
👉 Many industries also use crane operator training PPT for learning and certification.
Conclusion Choosing the Right EOT Crane Parts Matters (2026)
Reliable EOT crane parts ensure maximum uptime, workplace safety, and long operational life.
For industries in Ahmedabad and across Gujarat, choosing IS-certified components and trusted manufacturers is crucial for long-term performance.
If you need:
- EOT crane spare parts
- New single-girder or double-girder cranes
- AMC or maintenance services
Krishna Cranes & Hoists provides end-to-end lifting solutions across Ahmedabad with reliable service support.
FAQs – People Also Ask
Q1. Which is the most important part of an EOT crane?
The hoist and trolley assembly is considered the heart of the crane because it handles the actual lifting and horizontal movement.
Q2. What safety standards apply to EOT cranes in India?
EOT cranes must comply with IS 3177, IS 807, and IS 4137 safety guidelines, especially for industrial use.
Q3. How often should EOT cranes be serviced?
Light-duty cranes: every 3 months Medium/heavy-duty cranes: every 30–45 days
Q4. What is the lifespan of an EOT crane?
With preventive maintenance, an EOT crane lasts 15–25 years depending on usage.
Q5. Which industries in Ahmedabad use EOT cranes the most?
Fabrication units, engineering workshops, machine shops, chemical plants, logistics hubs, and warehouse operators.
